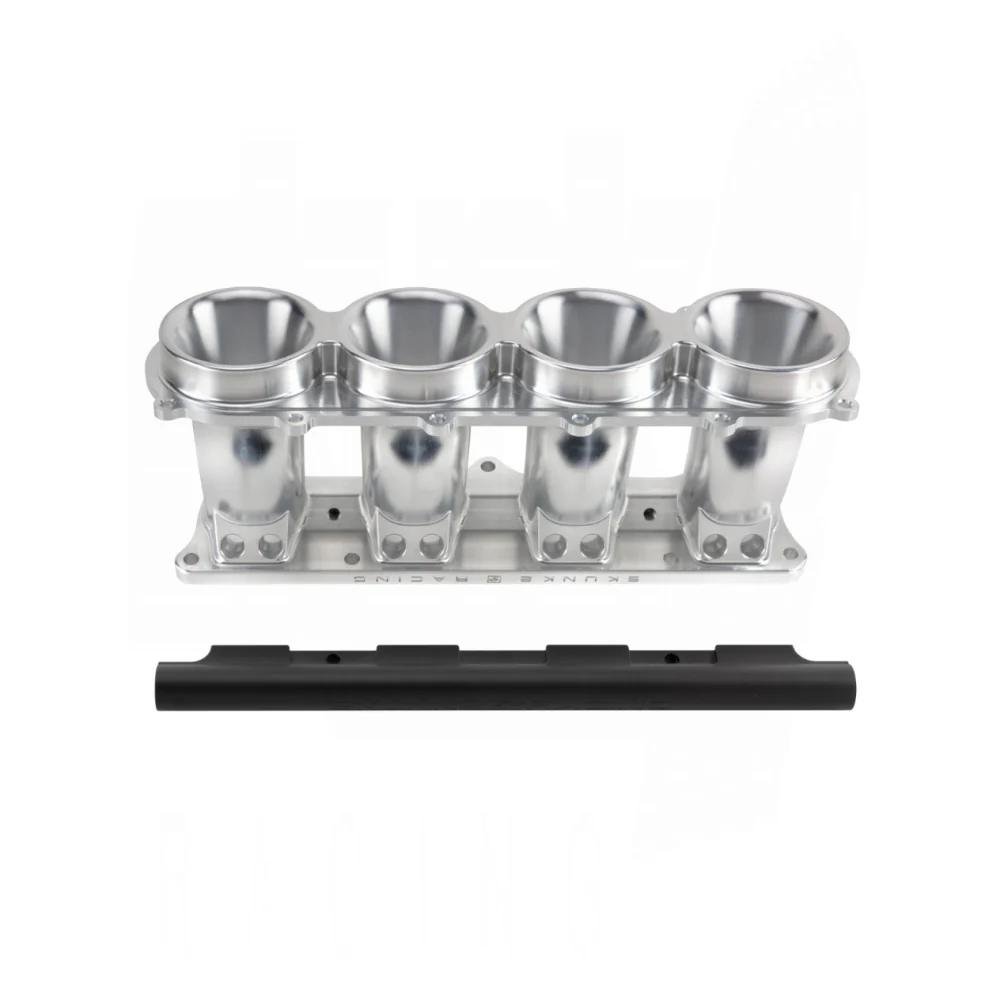

Skunk2 Racing Intake Manifold Ultra Race No Plenum Honda K20A

For those who already have an Ultra Race Plenum or want to make their own, Skunk2 Ultra Billet Race Runners are available separately.

The Skunk2 Ultra-Race Series Billet Intake Manifold, for Honda K20A/K20A2/K20Z1/K24A1 Engines is the ultimate manifold for high horsepower street and race engines. Though the standard Ultra Manifold already allows for 8 injectors to be mounted using two fuel rails, we listened to the demands of racers for a Skunk2 Ultra Manifold with a top side 8-Injector single rail setup. All Ultra Manifolds feature tapered runners with trumpet profiled entries and plenums that have been designed and optimized using CFD and on the dyno. The short tapered high-volume runners combined with an oversized plenum runners favors maximum top end power over lower end power and response. The best part about this project was that the hard part was completed years ago when we spent countless hours on the dyno developing the original cast Skunk2 Ultra Manifolds. There was no reason to mess with a great and proven design.

Features:

• Tapered Hi-Velocity CNC Billet Intake Runners
• Single Rail Top Mount 8-Injectors
• Billet Fuel Rail Included
• Water Fitting and Mounting Hardware Included

Compatible with Skunk2 Ultra Race Plenums:

• Ultra Race Side-Feed Plenum Silver – (P/N 907-05-0070)
• Ultra Race Side-Feed Plenum Black – (P/N 907-05-0075)
• Ultra Race Centerfeed Plenum Silver – (P/N 907-05-0080)
• Ultra Race Centerfeed Plenum Black – (P/N 907-05-0085)

If you have a plenum, you will also need to make sure you have the following parts to complete the Ultra Race Manifold.

• Ultra Race Manifold Complete Hardware Kit – (P/N 907-05-8000)
• Thermal Intake Manifold Gasket (PRB) (Included in Complete Hardware Kit) – (P/N 372-05-0350)
• Ultra Race Plenum Adapter Gasket (Included in Complete Hardware Kit) – (P/N 907-05-0020)

Optional Billet Aluminum Plenum Spacer Available:

• Ultra Race Plenum Spacer Silver - 1L (P/N 907-05-9001)
• Ultra Race Plenum Spacer Black - 1L (P/N 907-05-9051)
• Ultra Race Plenum Spacer Silver - 2L (P/N 907-05-9002)
• Ultra Race Plenum Spacer Black - 2L (P/N 907-05-9052)

Make	Model	Engine	Year
Assembly	Honda	K20	-
Assembly	Honda	K20A	-
Assembly	Honda	K20Z	-
Assembly	Honda	K24	-
Assembly	Honda	K24A	-
Assembly	Honda	K24Z	-
